3D Digital CMM Scanning

3D scanning with a CMM (Coordinate Measuring Machine) is a method used to create a detailed digital representation of a physical object by capturing its geometry. This process combines the precision of a CMM with the capabilities of 3D scanning to provide highly accurate 3D measurements and reverse engineering of highly complex machine’s parts or tools.

3D Scanning Technical Specifications

Total freedom of movement

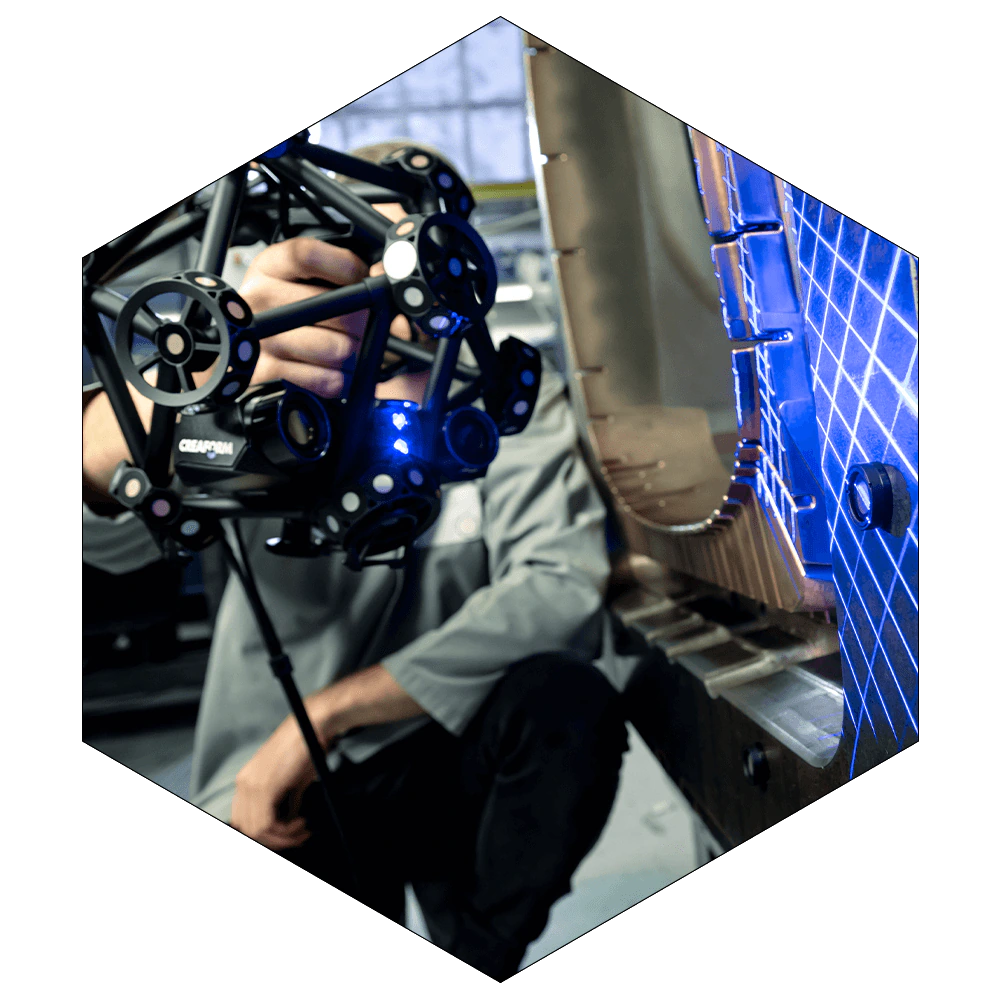

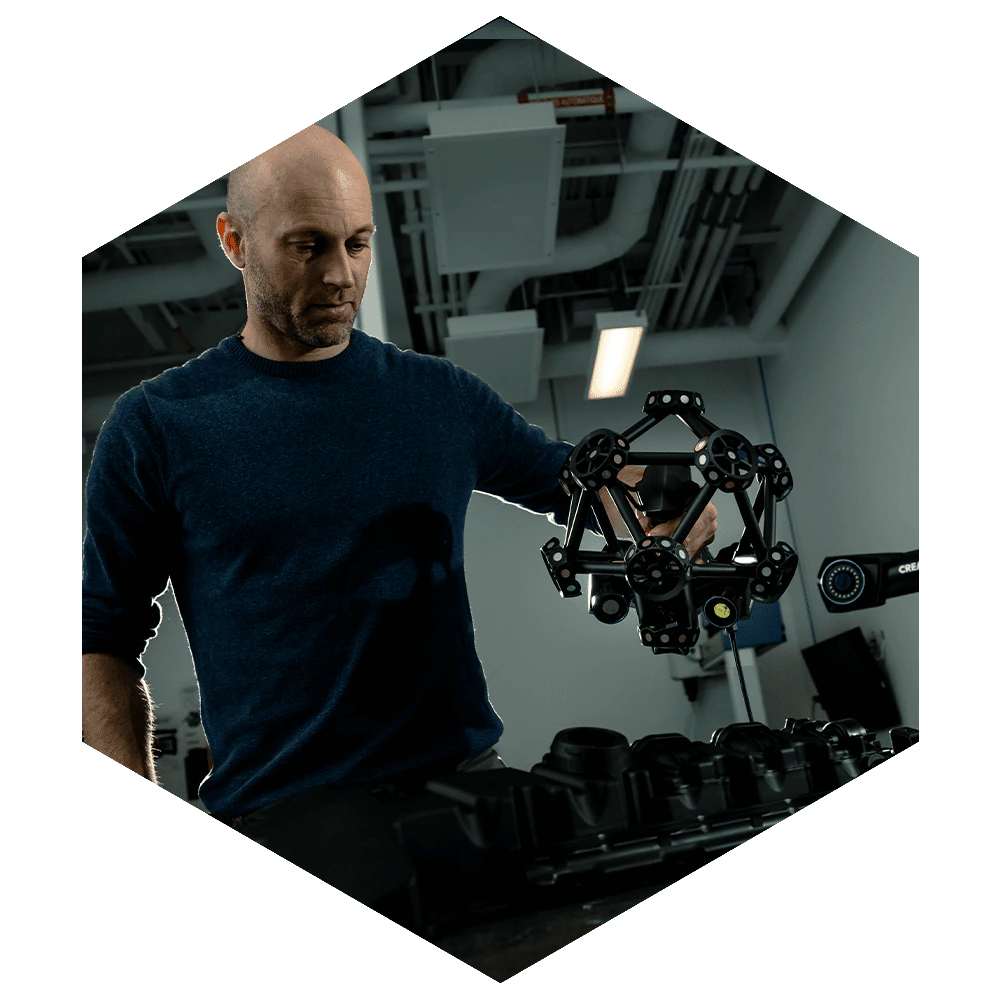

The combination of the arm-free handheld MetraSCAN 3D scanning system & the C-Track dual-camera sensor forms a unique duo that generates the most accurate measurements in the laboratory or on the shop-floor.

When combined with the HandyPROBE Next, this complete and powerful inspection solution combines probing and scanning to increase the reliability, speed, accuracy and versatility of your measurement processes.

Compared with any type of 3D scanner with probing capability (e.g. arm/scanner, laser tracker/scanner or optical tracker/scanner), the MetraSCAN 3D solution allows total freedom of movement for significantly increased product and measurement quality at an affordable price.

Accuracy & Speed

MetraSCAN 3D is the most accurate combined scanning and probing solution on the market today. Creaform’s TRUaccuracy technology ensures highly accurate measurements, regardless of the operator’s skill or the measurement environment – instability, vibration, thermal variation, etc.

Scanning up to 1,800,000 million points per second. The system is handheld and armless, so it is easy to learn and quick to use.

Dynamic Referencing & Auto Alignment

The coordinate system can quite literally be locked onto the objects being measured, thereby eliminating the effects of moving the parts or the vibrations of a working shop ﬂoor. The alignment function removes the need for manual, operator dependent alignment, drastically reducing the root cause of most measuring errors

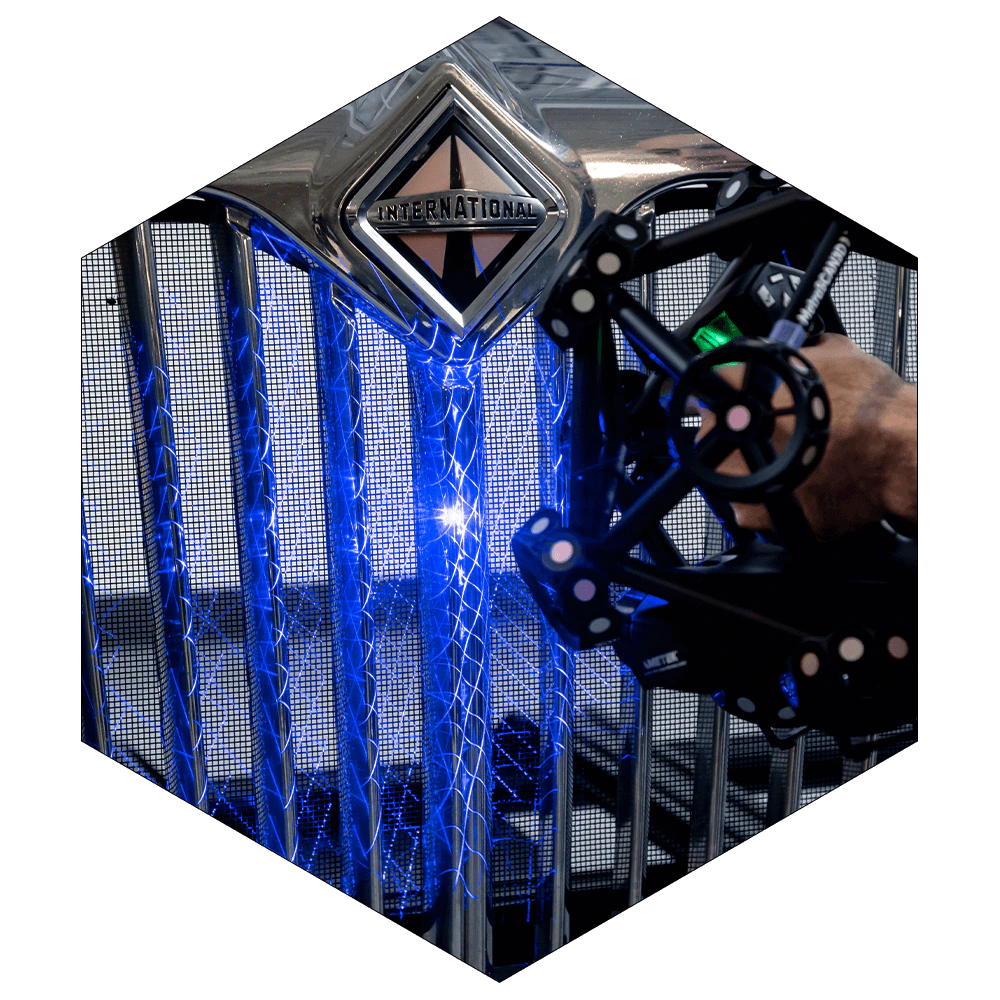

Scan shiny!

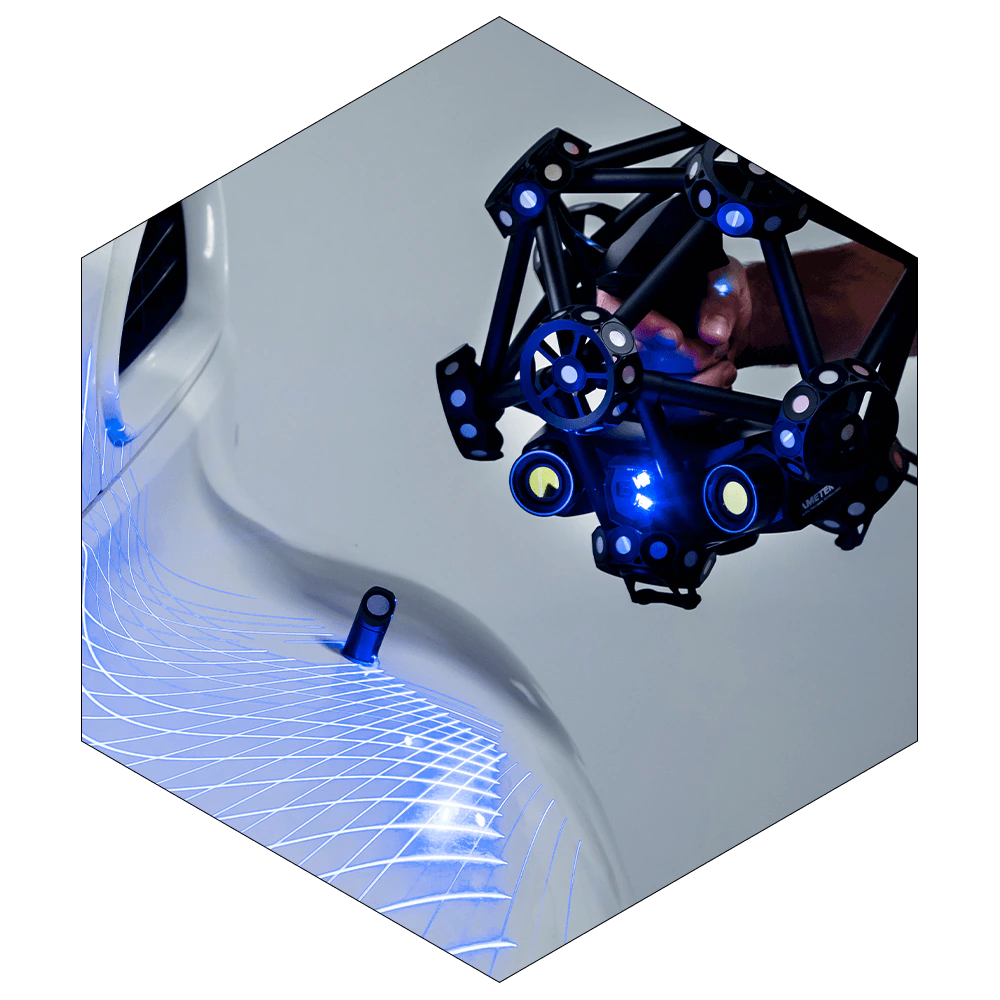

The MetraSCAN3D incorporates 14 Red or up to 30 Blue laser crosses which can scan any surface finish, including highly chromed parts, without any surface preparation. What’s more, unlike any other scanning devices, it does it quickly and accurately, producing a high quality scan surface without lots of noise.

Portable and Flexible

Compared with other scanning systems, which have a fixed measuring volume, MetraSCAN 3D allows a greater measuring flexibility by easily and dynamically extending the measuring volume with no loss of accuracy due to conventional leapfrog methods. The 100% portability of the MetraSCAN 3D makes it possible to inspect or reverse engineer parts and assemblies with unequalled precision, mobility and flexibility – no matter where the measurement takes place.

Technical Characteristics

SRSC Ltd are using for our clients the best available model of the Creaform’s CMM device, the MetraSCAN Black EliteTM, in a combination with the Handy Probe gauge and VXelement software for converting scanned 3D model into the 3D design software Solid Works to make the final technical drawings, accordingly.
Technical capabilities of the 3D CMM scanner MetraSCAN Black EliteTM can be found in the following table:

Accuracy

0.025 mm (0.0009 in)

Volumetric accuracy 9.1 m3

0.064 mm (0.0025 in)

Volumetric accuracy 16.6 m3

0.78mm (0.0031 in)

Automatic Volume Extension accuracy(1)

0.025 mm + 0.015 mm/m (0.0009 in + 0.00018 in/ft)

Form error (Sphere)

0.025 mm (0.0009 in)

Form error (Flat)

0.045 mm (0.0018 in)

Probing accuracy with HandyPROBE Next+

0.025 mm (0.0009 in)

Acceptance test(2)

Based on VDI/VDE 2634 part 3 and ISO 10360

Measurement capabilities (at a working distance of 0.4 m)

Pin

0.750 mm (0.0295 in)

Hole

1.250 mm (0.0394 in)

Step

0.025 mm (0.0009 in)

Wall

0.500 mm (0.0197 in)

Measurement resolution

0.025 mm (0.0009 in)

Mesh resolution

0.100 mm (0.0039 in)

Measurement rate

1,800,000 measurements/s

Light source

30 blue laser lines (+ 1 extra line)

Scanning area

310 x 350 mm (12.2 x 13.8 in)

Stand-off distance

300 mm (11.8 in)

Depth of ﬁeld

250 mm (9.8 in)

Part size range (recommended)

0.2–6 m

Setup Assistance tools(4)

Included

Output formats

.dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf

Patents

US 10,271,039, JP 6,596,433, CA 2,938,104, KR 10-2424135, EP (FR, UK, DE) 3,102,908, CA 3,166,558

Weight

Scanner: 1.49 kg (3.28 lb)
Probe: 0.5 kg (1.1 lb)
C-Track: 5.7 kg (12.5 lb)

Dimensions (LxWxH)

Scanner: 289 x 235 x 296 mm (11.4 x 9.3 x 11.7 in)
Probe: 68 x 157 x 340 mm (2.7 x 6.2 x 13.4 in)
C-Track: 1031 x 181 x 148 mm (40.6 x 7.1 x 5.8 in)

Operating temperature range

5-40 °C (41-104 °F)

Operating humidity range (non-condensing)

10-90%

Certifications

EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE

Compatible software

3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT)
